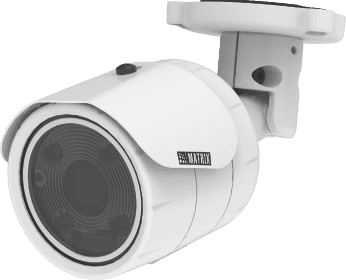

MATRIX CCTV Cameras SATATYA MIBR20FL28CWS P2 Bullet 2 MP Upto 30 m 2.8 mm

Matrix High-Performance Network Video Recorders 32ch

Matrix Network Video Recorders (NVRs) are designed to make video surveillance simple and reliable for any space, whether it’s a small office, a large campus, or an industrial site. They support 4 to 96 cameras and help you record, monitor, and store footage easily with a user-friendly system. Built-in RAID support keeps your data safe in all conditions. You can set up alerts, like motion detection or intrusion detection, that trigger alarms to help you respond quickly to events. With the SATATYA SIGHT mobile app, you can stay connected to your cameras and control your system anytime, no matter where you are.

Matrix 2MP IR Dome Camera with 2.8mm Lens with Audio (SATATYA CIDR20FL28CWP)

SATATYA CIDR20FL28CWP 2MP IR Dome Camera with 2.8mm Lens with Audio.Resolution 2 MP (1937 x 1080) Sensor Type and Size 1/2.8" SONY - CMOS 2.12MP Active Pixel Progressive Scan RGB CMOS, Back-Illuminated Image sensor ( STARVIS Series) Spectral Response 400-1000nm LENS Minimum Illumination Color - 0.01 Lux @ F1.2 (AGC ON); Monochrome - 0 Lux Focal Length 2.8mm Focus Range 0.3m to infinity Field of View (FOV) HFOV – 106.9° VFOV – 56.9° DFOV – 127.9° Lens Type/Lens Mount IR corrected aspherical lens; M12 Focus Fixed focus Aperture (F#) F 1.6/ F 2.0 Iris Type Fixed IR Range Up to 50m

Matrix 4CH High-Performance Network Video Recorders

SATATYA NVR0401XS P2 Network Video Recorders for Small Organizations. 4/8/16 Channel. 1 SATA Port, 18TB Storage Support. 360 Mbps Throughput Capacity. Single Disk RAID Support. NDAA Compliant. Centralized Monitoring with Cascading:- Connect up to 20 NVRs using the Cascading feature for unified system management Centrally monitor 1000+ cameras across all connected Network Video Recorders from a single interface Access real-time live view of any camera linked to any NVR in the cascade Reduce infrastructure cost by eliminating the need for external servers or VMS software Simplify monitoring with seamless local and remote access across all Network Video Recorders

Matrix 8MP IR Bullet Camera with Audio Support and 2.8mm Lens

8MP IR Bullet Camera with Audio Support and 2.8mm Lens SATATYA MIBR80FL28CWP Better Images even in Low Light with Sony STARVIS Back-Illuminated CMOS Sensor Proper Representation of Dark and Light Areas with True WDR 120 dB Optimised Storage with H.265, H.264, MJPEG Video Compression Extra Wide Field of View (HFOV 106.9°) Night Vision (IR Vision up to 30 meters) 512 GB SD Card for Edge Recording Dimensions (mm) : Length 155 x Width 75

Matrix (SATATYA MIBR50FL60CWP ) 5MP IR Bullet Camera with Audio Support and 6mm Lens

Better Images even in Low Light with Sony STARVIS Back-Illuminated CMOS Sensor Proper Representation of Dark and Light Areas with True WDR 120 dB Optimised Storage with H.265, H.264, MJPEG Video Compression Extra Wide Field of View (HFOV 54.3°) Night Vision (IR Range up to 30 meters) 512 GB SD Card for Edge Recording Dimensions (mm) : Length 155 x Width 75

Matrix SATATYA CIDR50FL60CWP P2 5MP IR Dome Camera with Audio Support and 6mm Lens

Matrix (SATATYA CIDR50FL60CWP P2) 5MP IR Dome Camera with Audio Support and 6mm Lens. Sony STARVIS Back Illuminated CMOS Image Sensor. High-quality Images with True WDR 120 dB. Video Compression H.265, H.264, MJPEG. Extra Wide Field of View (HFOV 54.3°). Night Vision (IR Vision upto 50 meters). 512 GB SD Card for Edge Recording. Dimensions (mm): Diameter Φ158 x Length 134.

Matrix 8CH High-Performance Network Video Recorders

SATATYA NVR0801XS P2 Network Video Recorders for Small Organizations. 4/8/16 Channel. 1 SATA Port, 18TB Storage Support. 360 Mbps Throughput Capacity. Single Disk RAID Support. NDAA Compliant. Centralized Monitoring with Cascading:- Connect up to 20 NVRs using the Cascading feature for unified system management Centrally monitor 1000+ cameras across all connected Network Video Recorders from a single interface Access real-time live view of any camera linked to any NVR in the cascade Reduce infrastructure cost by eliminating the need for external servers or VMS software Simplify monitoring with seamless local and remote access across all Network Video Recorders

Matrix 64 Channel NVR with 4K Support and 4 HDD Slots

SATATYA NVR6404X P2 Matrix 64 Channel Network Video Recorders for Small Organizations.. 64 Channel. 8 SATA Port, 18TB Storage Support. 512 Mbps Throughput Capacity. Single Disk RAID Support. NDAA Compliant. Centralized Monitoring with Cascading:- Connect up to 20 NVRs using the Cascading feature for unified system management Centrally monitor 1000+ cameras across all connected Network Video Recorders from a single interface Access real-time live view of any camera linked to any NVR in the cascade Reduce infrastructure cost by eliminating the need for external servers or VMS software Simplify monitoring with seamless local and remote access across all Network Video Recorders

Matrix (SATATYA RIDR50FL28CWP P2) 5MP IR Ruggedized Camera (2.8mm Lens) with Audio Support

Matrix Ruggedized Network Cameras are also designed for seamless integration with modern video management systems through ONVIF compatibility, ensuring flexibility and scalability for large surveillance networks. Whether used for perimeter monitoring, industrial safety, or smart city surveillance, these cameras deliver reliable performance and superior image clarity.

Matrix 5MP IR Dome Camera with Audio Support

SATATYA MIDR50FL60CWP Better Images even in Low Light with Sony STARVIS Back-Illuminated CMOS Sensor Proper Representation of Dark and Light Areas with True WDR 120 dB Optimised Storage with H.265, H.264, MJPEG Video Compression Extra Wide Field of View (HFOV 54.3°) Night Vision (IR Range up to 30 meters) 512 GB SD Card for Edge Recording Dimensions (mm) : Diameter Φ126 x Length 100

Matrix ( SATATYA MIDR20FL28CWS ) 2MP IR Dome Camera with 2.8mm Lens – Full HD 1080p Security Camera, Night Vision, PoE, Weatherproof

SATATYA MIDR20FL28CWS 2MP IR Dome Camera with 2.8mm Lens1 Resolution 2MP(1920x1080) Sensor Type and Size 1/2.8"SONY-CMOS2MPActivePixel Progressive Scan, Back Illuminated Image sensor(STARVIS Series). Video Analytics:- Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion. Lens Mount M12 Focus Fixed focus Aperture(F#) F1.6/F2.0 Iris Type Fixed IR Range Upto30m IR Led Wave length 850nm IR Switching Auto/Manual

Matrix SATATYA PTZ5040P 5MP PTZ Camera | 38x Optical Zoom | 300m IR

The Matrix SATATYA PTZ5040P is an advanced 5MP PTZ surveillance camera engineered for large-scale monitoring environments such as city surveillance, industrial facilities, highways, and critical infrastructure. With 38x optical zoom, the camera captures clear images of distant objects while maintaining sharp image quality. Its True WDR technology ensures balanced video even in challenging lighting conditions. Equipped with H.265 compression, Intelligent Video Analytics (IVA), and 300m infrared night vision, the camera delivers reliable 24/7 monitoring performance. The camera also supports 300 preset positions, enabling fast and accurate monitoring of multiple locations.
