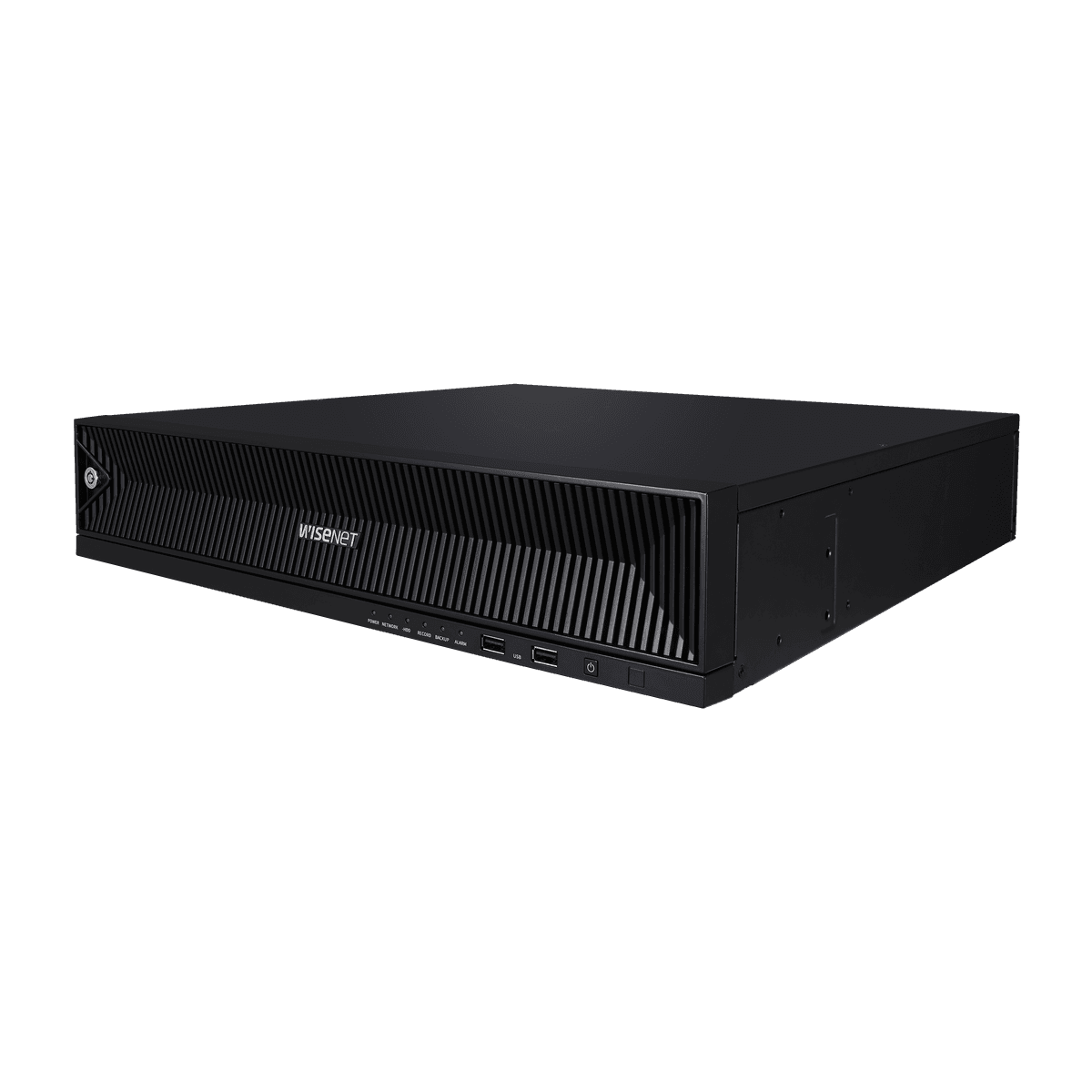

Hanwha XRN-6410RB2 – 64‑Channel Network Video Recorder (NVR)
The Hanwha XRN-6410RB2 is a professional-grade 64-channel NVR designed for high-capacity surveillance systems in commercial, industrial, and enterprise environments. Compatible with Hanwha IP cameras and other ONVIF-compliant devices, it supports H.265/H.264 compression, enabling efficient storage without compromising video quality. With advanced features like real-time recording, remote monitoring, and intelligent video analytics, this NVR allows for reliable and scalable security management. It also supports multiple hard drives for large storage capacity and offers flexible network connectivity, making it ideal for airports, schools, shopping complexes, and large offices
Hanwha XRN-6410RB2, 64 Channel NVR
Hanwha Network Video Recorder
H.265 NVR, IP CCTV NVR, Enterprise Surveillance NVR
Hanwha security system, multi-channel NVR India
64-channel Hanwha NVR for enterprise Commercial & industrial CCTV NVR
Hanwha XRN series network recorder
Key Features
- 📺 64-channel IP camera support
- 💾 Supports H.265 / H.264 video compression
- 🧠 Advanced analytics & motion detection
- 🌐 Remote monitoring via network / mobile app
- 🔌 Multiple HDD slots for expanded storage
- ✅ ONVIF-compliant for easy integration with other IP cameras
- 🏢 Suitable for enterprise, industrial, and commercial surveillance
- Display
- Network camera Inputs Max. 64CH
- Resolution 32MP ~ CIF
- Protocols SUNAPI, ONVIF
- Decoding Local Display [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz)
- Multi Screen Display [Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 64 Division - Expand Mode : HDMI1 up to 32 Div. HDMI2 up to 32 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
- Resolution 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps)
- Performance
- Operating System Embedded Linux
- Record Compression H.265, H.264, MJPEG
- Recording Bandwidth Distributed mode : Up to 400 Mbps Normal mode : Up to 150 Mbps [RAID mode] Normal : Up to 400 Mbps Degrade/ Rebuild : Up to 320 Mbps
- Resolution 32MP ~ CIF
- Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
- Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
- Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown
- Search & Play Playback Bandwidth RAID Mode : Max. 64Mbps(64CH simultaneously) Non-RAID Mode : Max. 32Mbps
- User Max. 4 Users (Local 1, Remote 3)
- Simultaneous playback Max. 112CH(Local 64CH, Remote 16CH per user)
- Fisheye Dewarping Support (Local 1CH), CMS
- Mode Date & Time(Calendar), Event list, Text Search, Smart Search
- Resolution CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
- Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
- Storage Supported HDD Up to 10TB
- HDD Slot SATA 8ea(Max. 80TB, Non-RAID mode), Hot swap
- External iSCSI storage
- RAID RAID-5/6(Single, 1 Array)
- Backup File backup BU/Exe/AVI(GUI), JPG/AVI(Network)
- Function Multi channel(Up to 16CH) Play, Date-Time/Title display
- Network
- Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
- DDNS Hanwha DDNS
- Transmission Bandwidth Max. 400Mbps
- Audio Input/Output 64 CH(network)
- Compression G.711, G.726, AAC(16/48KHz)
- Audio Communication 2-Way
- Max Remote Users Search(3), Live Unicast(10), Multicast(20)
- Security IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
- Web viewer Supported OS Windows 10, macOS 10.13
- Supported browser Google Chrome, Microsoft Edge, Mac Safari
- Viewer Software WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS
- Function
- Camera Setup Register Auto, Manual
- Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
- PTZ Control Via GUI, Webviewer, SPC-2000
- Preset 300 Presets
- Smart phone Support Model iOS, Android
- Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
- Control Live 16CH(Multi-Profile Support), Playback 4CH
- Max. Remote Users Search(3), Live Unicast(10)
- Redundancy Failover N+1
- ARB Support
- Easy configuration P2P(QR code)
- Interface

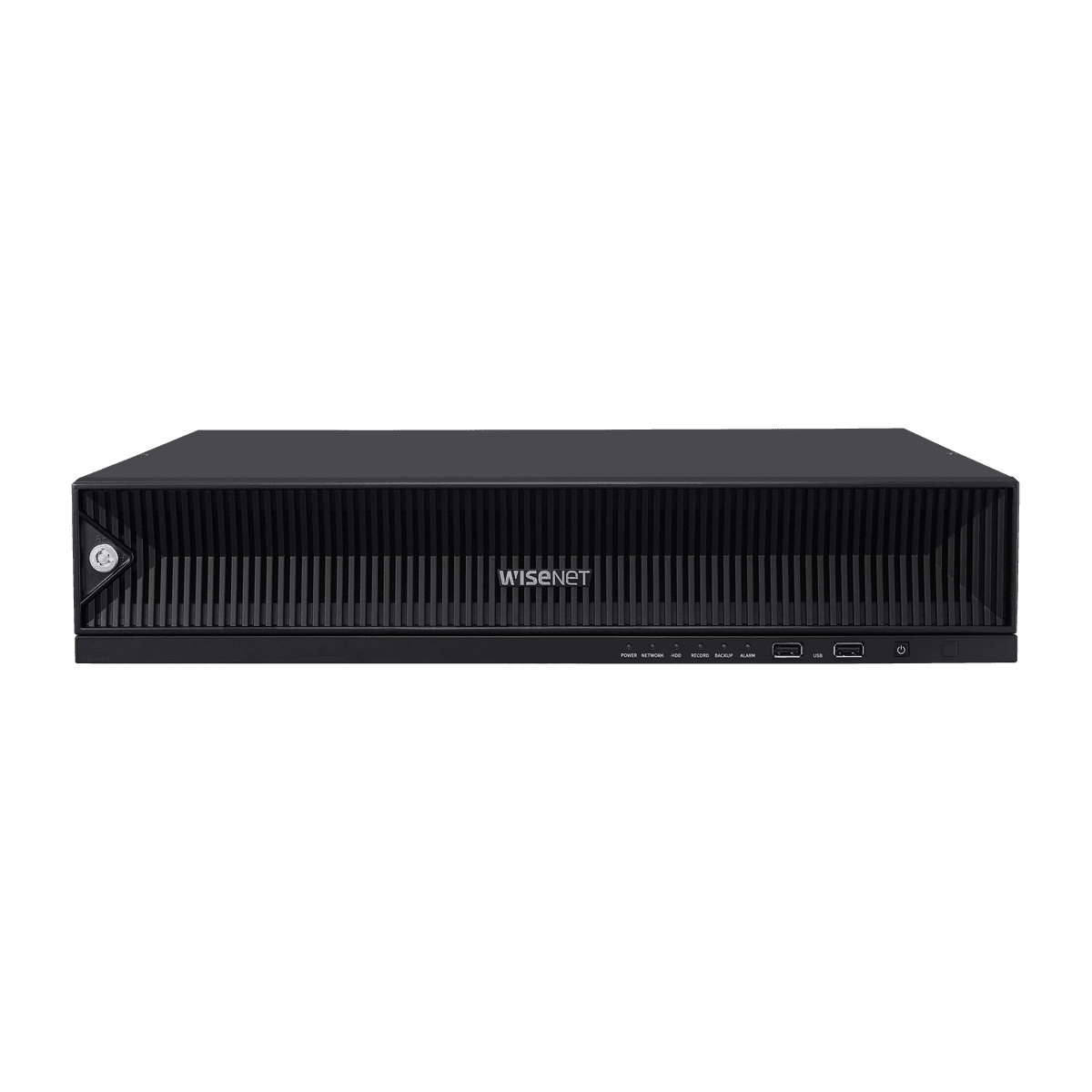

- Front Indicator HDD, Alarm, Power, Record, Backup, Network, RAID
- Storage OK
- Reset OK
- HDD Keylock OK

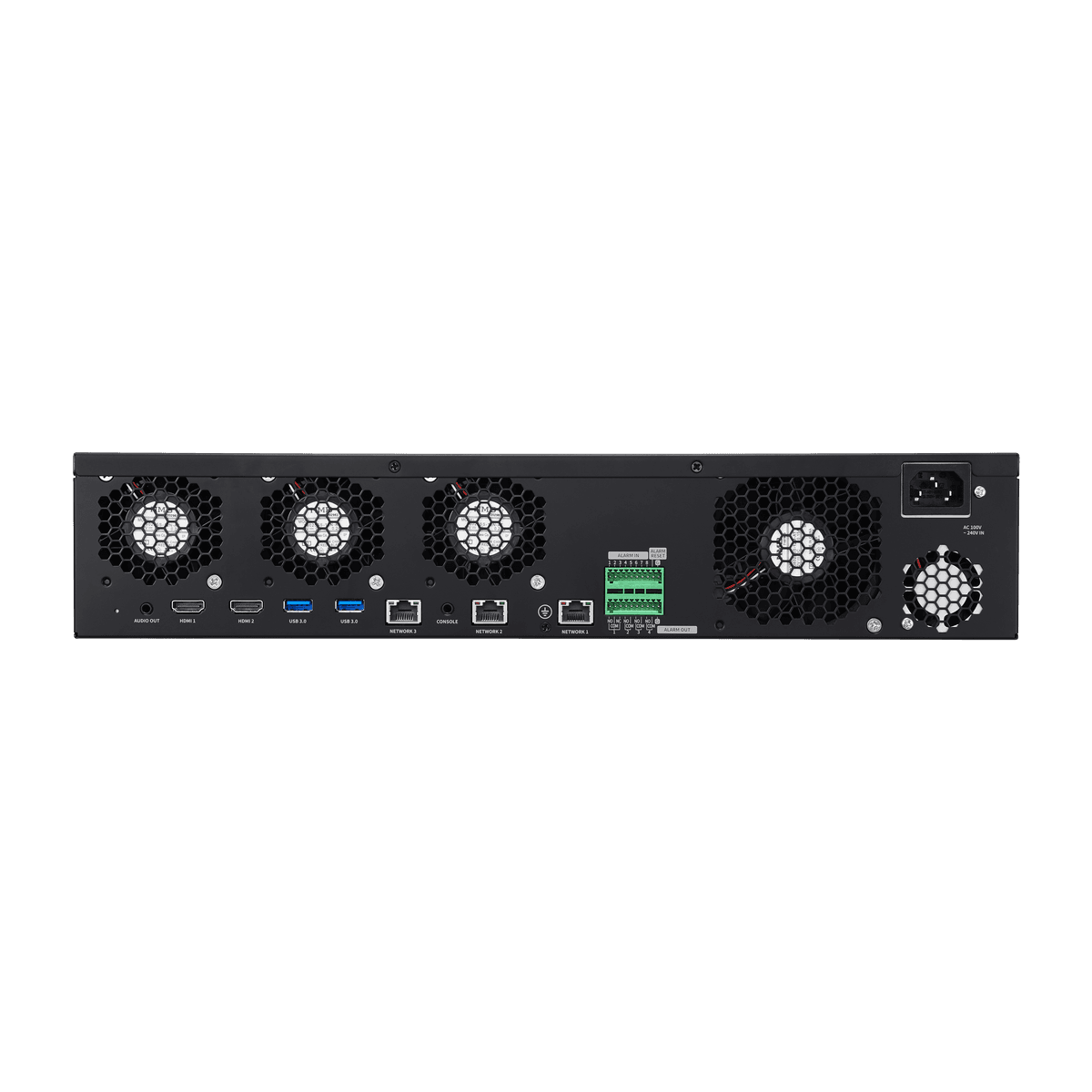

- HDMI 2EA ( Playback/Setup → HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz
- Audio Out 1EA (3.5mm Audio Jack)
- Ethernet RJ-45 3EA (LAN/WAN, 1Gbps)
- Alarm In 8EA, Out 4EA
- USB 4EA(Front 2 x USB2.0 + Rear 2 x USB 3.0)
- Power inlet AC 1EA
- System
- Log Log List Max. 100,000 (System Log, Event Log each)
- System Control Mouse, Keyboard, Web, Controller (SPC-2000)
- Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
- Environmental
- Operating Temperature 0°C to +40°C(32℉ to 104℉)
- Operating Humidity 20% ~ 85% RH
- Electrical
- Power Input 100 ~ 240 VAC ±10%; 50/60Hz, 1.7A(Single SMPS)
- Power Consumption Max. 160W(with 10TB HDD 8EA)
- Mechanical
- Color / Material Black / Metal
- Dimension 438.0 x 86.0 x 434.9 mm (17.47 x 3.39 x 17.12 inch)
- Weight 9.1Kg(20.1lb, Except HDD)
- Intelligent Analysis

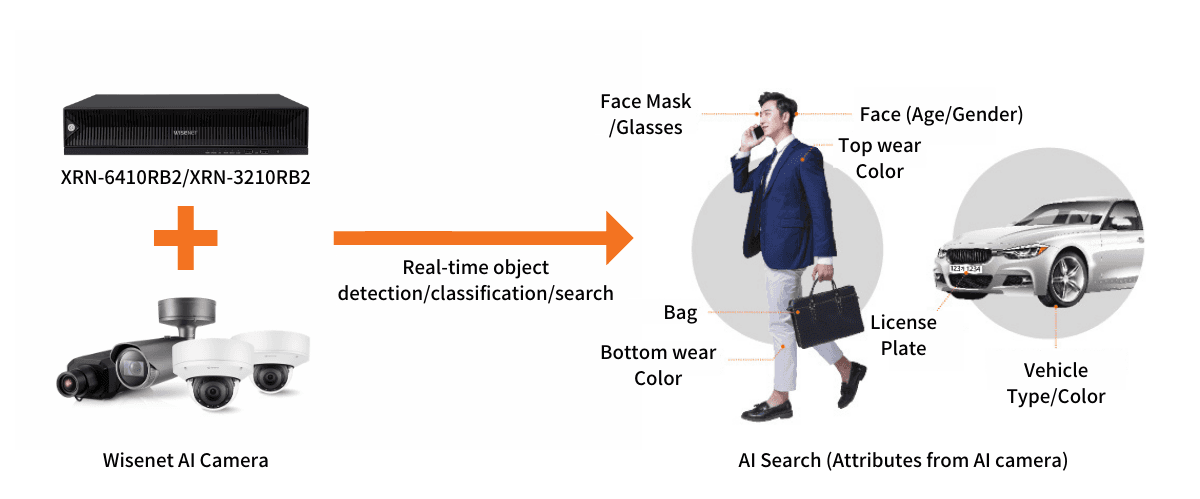

- AI Search Object Attribute Compatible with Hanwha AI Cameras
