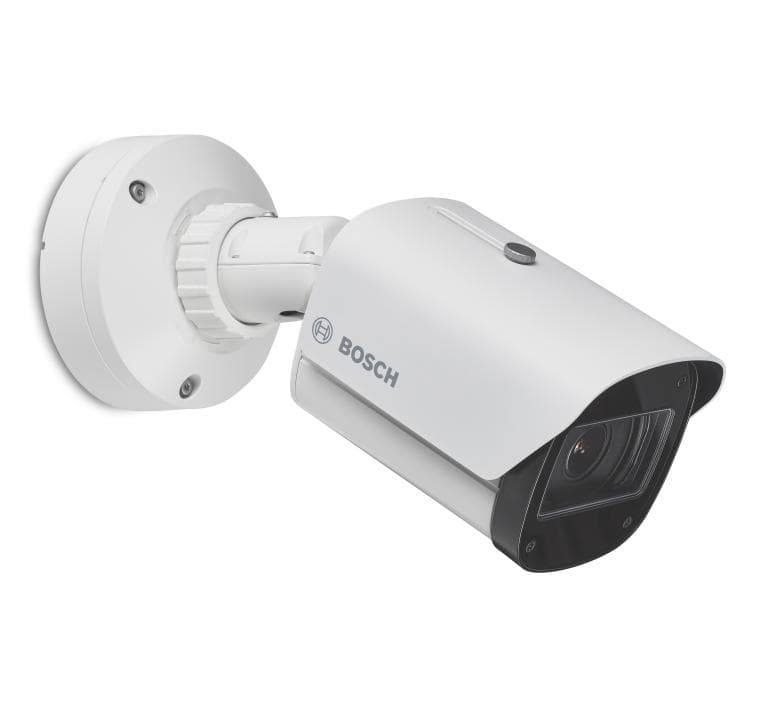

Bosch STQC NBE-7703-ALXT – 4MP AI-Powered Long-Range IR Bullet Camera
Smart. Rugged. Built for Mission-Critical Surveillance. The Bosch NBE-7703-ALXT DINION 7100i IR is a high-performance 4MP network bullet camera designed for demanding outdoor security applications. Combining Starlight X low-light technology, HDR X, intelligent IR illumination and IVA Pro deep-learning video analytics, it delivers sharp, reliable surveillance images in challenging lighting and weather conditions. With a motorized 10.5–47 mm varifocal lens, rugged IP66/IP67 and IK10 protection, and long-range IR illumination, the camera is an excellent choice for perimeter security, traffic monitoring, critical infrastructure, industrial sites and large outdoor areas.
4MP High-Resolution Imaging – Captures detailed video at up to 2688 × 1520 resolution.
Starlight X Technology – Delivers excellent image detail and sensitivity in very low-light environments.
HDR X Technology – Preserves details in both bright highlights and dark areas while reducing motion-related HDR artefacts.
IVA Pro Video Analytics – Deep-learning-based detection helps reliably identify people and vehicles.
Long-Range Smart IR – Integrated 850 nm intelligent IR illumination provides coverage of up to 140 m, with optional 940 nm invisible IR or white-light modules.
Motorized Varifocal Lens – 10.5–47 mm focal length provides flexible wide-to-telephoto coverage.
4.5× Optical Zoom – Enables closer viewing of distant areas without sacrificing optical image quality.
Up to 60 fps – Supports smooth video capture for fast-moving scenes.
Rugged Outdoor Construction – IP66/IP67/IP6K9K protection and IK10 impact resistance help protect against rain, dust and vandalism.
Wide Temperature Range – Designed for demanding outdoor environments, with operation down to approximately -50°C depending on power configuration.
H.265 / H.264 / MJPEG – Efficient video compression helps reduce network and storage requirements.
Electronic Image Stabilization – Helps maintain a stable image in environments affected by continuous vibration.
ONVIF Support – Designed for integration with compatible IP video management systems.
- Specifications
- Model - NBE-7703-ALXT
- Product Series - Bosch DINION 7100i IR
- Camera Type - Outdoor IP Bullet Camera
- Resolution - 4MP
- Maximum Resolution - 2688 × 1520
- Image Sensor - 1/1.8" CMOS
- Frame Rate - Up to 60 fps
- Lens - Motorized Varifocal
- Focal Length - 10.5–47 mm
- Optical Zoom - 4.5×
- Low-Light Technology - Starlight X
- WDR Technology - HDR X
- IR Illumination - Intelligent 850 nm IR
- IR Range -Up to 140 m*
- Video Analytics - IVA Pro
- Video Compression - H.265 / H.264 / MJPEG
- Image Stabilization - Electronic
- Ingress Protection - IP66 / IP67 / IP6K9K
- Impact Protection - IK10
- Power Options - PoE / 12 VDC / 24 VAC
- Installation - Surface / Wall / Pole mounting options
- Application - Indoor & Outdoor Ideal For Perimeter, Traffic,
- Industrial & Critical Infrastructure
- *IR distance can vary by configuration, scene and installation conditions. Bosch documentation lists up to 140 m for the NBE-7703-ALXT configuration.
