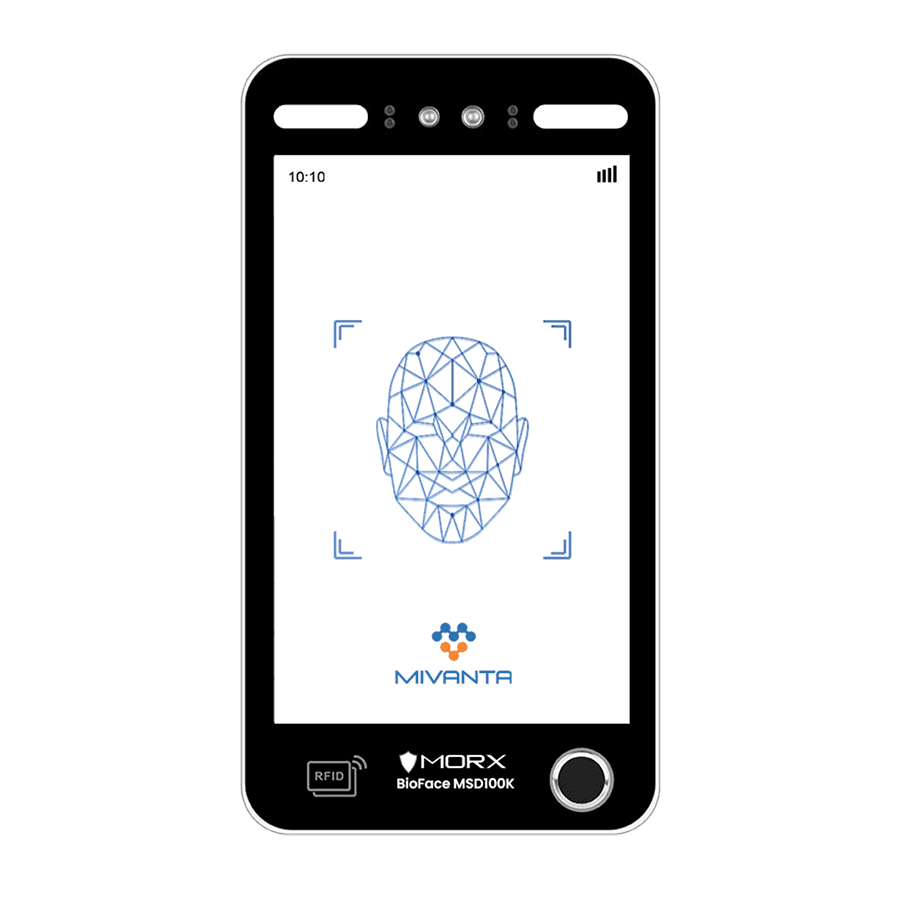

BioFace MSD100K Time Attendance & Access Control System
The BioFace MSD100K is a high-performance AI-powered biometric terminal designed for time attendance and access control in large-scale organizations. Equipped with the latest AI face recognition algorithm and a 10.1-inch touchscreen display, it delivers unmatched speed, accuracy, and capacity for enterprise-grade security and workforce management.
AI Dynamic Face Recognition – Ultra-fast and precise verification powered by advanced AI.
Multi-Authentication Support – Face, Fingerprint, Password, and optional ID/IC card.
Large Display – 10.1-inch touchscreen for an intuitive and smooth user experien
QR Code & Card Reader Support – Flexible authentication methods for added convenience.
Access Control & Visitor Management – Integrated with secure entry solutions for staff and guests.
Voice Broadcast Feature – Real-time audio prompts for seamless operation.
- CPU 1.2G Dual-Core ARM Cortex-A7
- NPU 1200G (1.2T)
- RAM
- 512M DDR3L
- ROM 8G EMMC
- Camera 2MP HD Color Camera, 2MP HD Infrared Camera, SONY camera Wide Range Dynamic
- Fill Light LED Fill Light and Dual Infrared Fill Light (Automatic control according to ambient light)
- Display 10.1 Inch IPS Touch Screen, HD 800*1280
- Communication port TCP/IP, USB-Type A(Support U disk), Wi, 4G optional
- Product Size 299mm*161mm*20mm
- Power DC 12V, 2A
- Working Temperature 0~45 °C
- Working Environment Under normal light, strong light, dark environment, backlight
- Case Material Aluminum alloy
- OS Linux 3.0
- Language English and others are customizable
- Verify Method Face Recognition, ID/IC/NFC Card, Password, or combination
- HID Card Reader Optional
- QR Code Scanner Support(Scan by camera)
- Face/Card/Password Capacity 1,00,000
- Fingerprint Capacity 2,00,000
- Logs Capacity 5,00,000
- Face Recognition Speed <0.2S
- Face Recognition Distance 0.5~2.5 meters(adjustable)
- Live Face Detection Reject Photo and Video
- Mask Detection Support mask detection and face recognition with wearing mask
- Relay output One set
- Alarm output One set
- Door sensor Support
- Wiegand One set WG 26/34 Input/Output
- Exit button Support
- Anti-Pass Back Support
